WALL-MOUNT MOTION SENSORS
Wall mounted Infrared motion sensor Round shaped mini size 180° 6A 230VAC white
SKU: 10-4000
Package size: 4
Large Package size: 40
Catalog page / packaging: 182 4-40

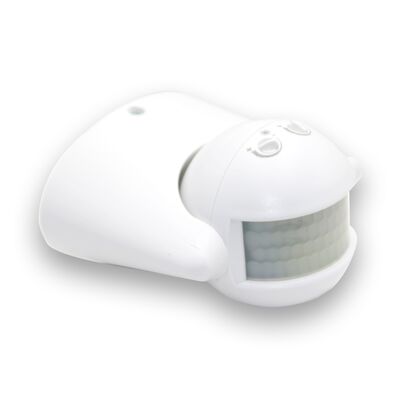

Wall-Mounted Spherical Mini Motion Detector – Infrared Sensor
Detection Angle: 180°
Maximum Detection Distance: <12m (at 24°C)
Motion Detection Speed: 0.6–1.5m/s
Mounting Height: 1.8–2.5m
220V–240VAC, 50Hz
Power Consumption: 0.45W (in operation), 0.1W (standby)
IP44
White plastic body
Maximum Load Current: <6A
Maximum Resistive Load: 1200W
Ambient Light Sensitivity: Adjustable from 3 to 2000 lux
Time Delay: Adjustable from 10 seconds to 15 minutes
Operating Temperature Range: -20°C to 40°C
Operating Humidity: Up to 93% RH
L:80mm, W:55mm, H:65mm
The timer resets continuously as long as motion is detected in the area.
Detection Angle: 180°
Maximum Detection Distance: <12m (at 24°C)
Motion Detection Speed: 0.6–1.5m/s
Mounting Height: 1.8–2.5m
220V–240VAC, 50Hz
Power Consumption: 0.45W (in operation), 0.1W (standby)
IP44
White plastic body
Maximum Load Current: <6A
Maximum Resistive Load: 1200W
Ambient Light Sensitivity: Adjustable from 3 to 2000 lux
Time Delay: Adjustable from 10 seconds to 15 minutes
Operating Temperature Range: -20°C to 40°C
Operating Humidity: Up to 93% RH
L:80mm, W:55mm, H:65mm
The timer resets continuously as long as motion is detected in the area.
