CEILING MOTION SENSORS

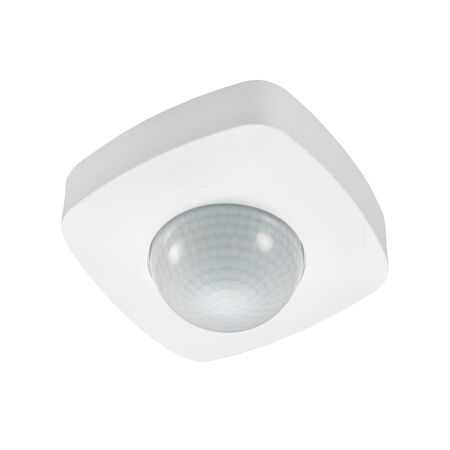

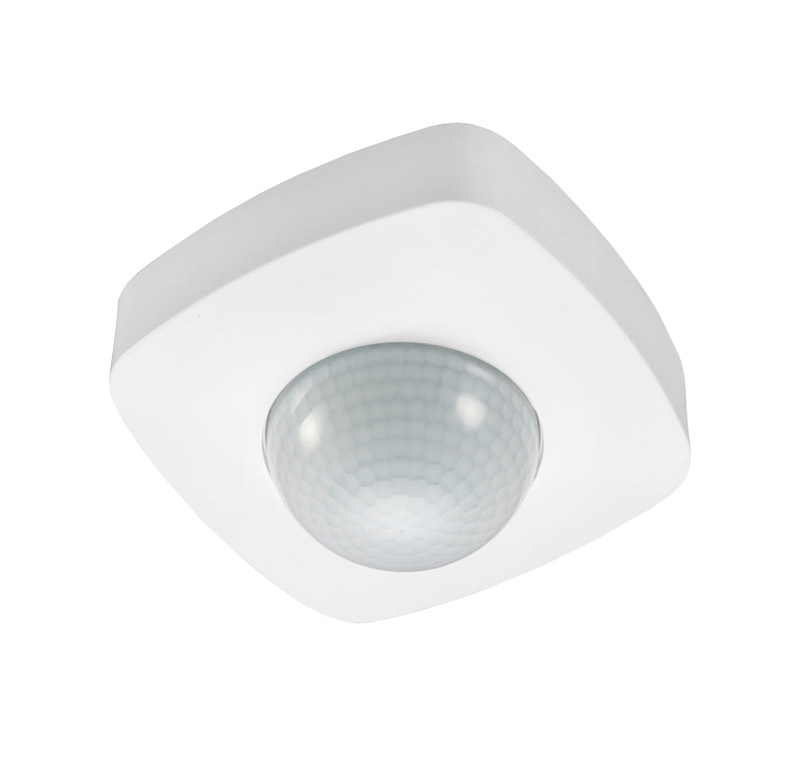

Ceiling mounted Infrared Presence Sensor 20m detection 360° 10A 230V white
SKU: 10-530
Package size: 4
Large Package size: 56
Catalog page / packaging: 181 4-56
Ceiling-Mounted Infrared Presence Detector – Surface Mounted
Detection Angle: 360°
Maximum Detection Distance: <20m (at 24°C)
Motion Detection Speed: 0.1–3m/s
Mounting Height: 2.2–6m
220V–240VAC, 50Hz
Power Consumption: 0.50W (in operation)
IP-20
White plastic body
Maximum Load Current: <10A
Maximum Resistive Load: 2000W
Ambient Light Sensitivity: Adjustable from 3 to 2000 lux
Time Delay: Adjustable from 10 seconds to 30 minutes
Operating Temperature Range: -20°C to 40°C
Operating Humidity: Up to 93% RH
L: 100mm, W:100mm, H:60mm
The timer resets continuously as long as motion is detected in the area.
Detection Angle: 360°
Maximum Detection Distance: <20m (at 24°C)
Motion Detection Speed: 0.1–3m/s
Mounting Height: 2.2–6m
220V–240VAC, 50Hz
Power Consumption: 0.50W (in operation)
IP-20
White plastic body
Maximum Load Current: <10A
Maximum Resistive Load: 2000W
Ambient Light Sensitivity: Adjustable from 3 to 2000 lux
Time Delay: Adjustable from 10 seconds to 30 minutes
Operating Temperature Range: -20°C to 40°C
Operating Humidity: Up to 93% RH
L: 100mm, W:100mm, H:60mm
The timer resets continuously as long as motion is detected in the area.
